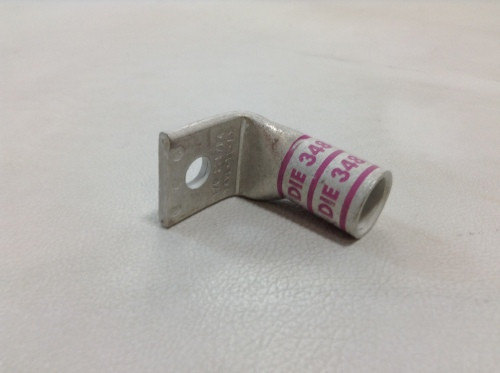

YAV25LTC14FX90 Lug 1-Hole / 90 Degree / 1/0 Flex / 1/0 AWG / 1/4 Stud Size / Standard Barrel

(No reviews yet) Write a Review
SKU:
YAV25LTC14FX90
MPN:
YAV25LTC14FX90
$12.00
Frequently bought together:

Description

1/0 Flex G,H,I,K,M,DLO, 1/0 AWG (B/C) CU, One Hole, 1/4 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pink Color Code, 12 or 348 Die Index.

Logistics
Carton Quantity 25
Minimum Pack Quantity 25
Pallet Quantity 24000
Item Type Stock
Returnable Yes
UPC 781810085608
Weight 0.070 LB
General
Application Wire Termination
Color Code Pink
Connector Type STANDARD BARREL
Die Index 12
Feature - Barrel Style Chamfered
Feature - Barrel Type Standard
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 1
Physical Attribute - Tongue Type Standard
Plated Y
Plating Type Tin
Trade Name HYLUG™
Type Standard Barrel, Tin Plated
UPC 781810085608
UPC 14 Digit GTIN 00781810085608
Dimensions
Dimension - B Length fraction 11/16 in
Dimension - B Length inch 0.69 in
Dimension - Bolt Hole Size inch 0.27 in
Dimension - Bolt Size fraction 1/4
Dimension - Bolt Size inch 0.25
Dimension - D inch 0.64
Dimension - Height inch 1.31 in
Dimension - Height mm 33.3 mm
Dimension - Hole Size fraction 1/4
Dimension - Hole Size inch 0.27
Dimension - Hole Size mm 6.9 mm
Dimension - L Length Overall mm 26 mm
Dimension - Length Overall inch 1.03 in
Dimension - N inch 0.31 in
Dimension - Outside Diameter inch 0.56 in
Dimension - Pad Width inch 0.83 in
Dimension - Strip Length inch 11/16
Dimension - Stud Size fraction 1/4
Dimension - Z (inch) 0.33 in
Package Height 0 in
Package Length 0 in
Package Weight 0 lb
Package Width 0 in
Physical Attribute - Tongue Angle 90 Degree
Electrical Ratings
Voltage - Maximum 35000
Voltage Rating 35 kV
Conductor Related
Conductor - Copper DLO Size 1/0 AWG
Conductor - Copper DLO Size Range 1/0 AWG
Conductor - Copper Flex G Size "1/0 AWG"
Conductor - Copper Flex G Size Range 1/0 AWG
Conductor - Copper Flex H Size "1/0 AWG"
Conductor - Copper Flex H Size Range 1/0 AWG
Conductor - Copper Flex I Size "1/0 AWG"
Conductor - Copper Flex I Size Range 1/0 AWG
Conductor - Copper Flex K Size "1/0 AWG"
Conductor - Copper Flex K Size Range 1/0 AWG
Conductor - Copper Flex M Size "1/0 AWG"
Conductor - Copper Str Compact Size "1/0 AWG"
Conductor - Copper Str Navy Size 100
Conductor - Copper Str Navy Size Range 100 (61) Navy
Conductor - Copper Str Size "1/0 AWG"
Conductor - Copper Str Size Range 1/0 AWG
Conductor - CopperWeld Str Size 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG
Conductor - CopperWeld Str Size Range 1/0 F AWG-1/0 K AWG
Conductor - Material COPPER
Conductor Size 1/0 AWG
Conductor Type CODE/FLEX
Wire Size 1/0 AWG
Certifications And Compliance
Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes
Configuration
Connector Type STANDARD BARREL
Physical Attribute - Number of Holes 1
