Burndy
YA6CLNT6, 6 AWG Cu, #6 Stud, Standard Barrel, Narrow Tongue
- SKU:
- YA6CLNT6
- MPN:
- YA6CLNT6
- Availability:
- 510 in stock
- Minimum Purchase:
- 4 units
Frequently bought together:
Description

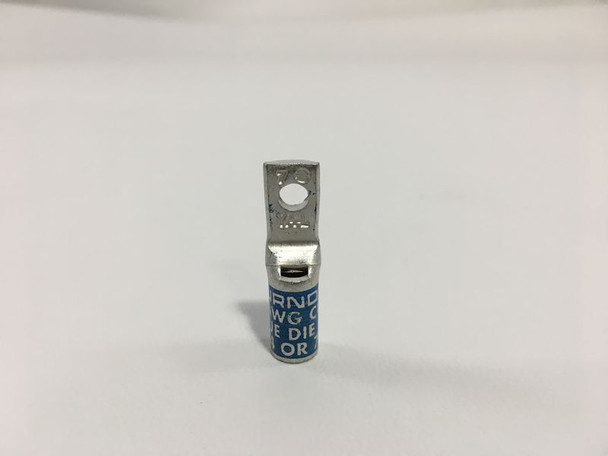

YA6CLNT6, 6 AWG Cu, #6 Stud, Standard Barrel, Narrow Tongue
6 AWG CU, One Hole, #6 Standard Barrel, Inspection Window, Narrow Tongue Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 7 or 374 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
