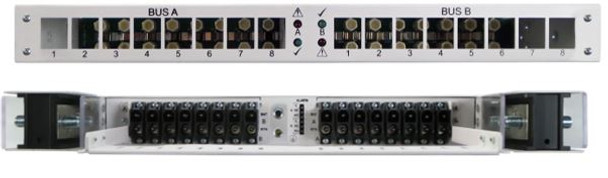

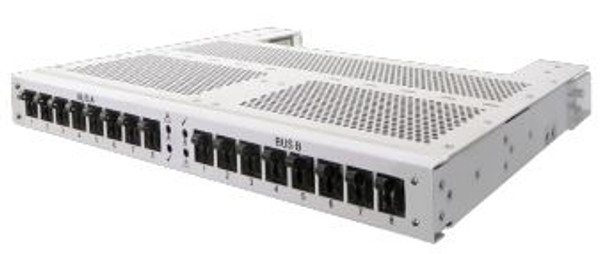

NPDCB400D8 Quick-Connect DC protection panel, dual bus, 400A/bus, Eight 65A CB outputs/bus, output connectors, 19/23” rack mnt, 1RU

To start 2023 Westell is introducing the second panel in our line of quick-connect connectivity, the NPDCB400D8. This high performance panel, provides up to 400A/bus in a 19” 1RU package. Sensata CER1 bullet-style plug-in breakers provide up to 65A/position, in an 8x8 dual bus configuration.

As mentioned with the GMT panels, the main advantage of the quick-connects is they allow installers to use a faster and non-torque required plug installation process versus the multi-step process of the screw-terminal installation. Quick-connect terminals allow wires to be run horizontally from the panel vs the vertical run of wires from a waterfall screw-terminal design. This allows the installers to optimize the wire management and allows the panels to be stacked closer together if desired.

As the market has come to expect, Westell’s power distribution panels offer state of the art thermal design while combining best in class performance, to provide industry leading value and usability. The only 1RU, 19” 8x8 circuit breaker panel in the market with 400A @ 40C, 320A @ 50C and 240A @ 60C ampacity.

 Click HERE for Spec Sheet
