LMR®-240 Type Low Loss RF Coax Cable Per Foot - LOW-240

×
×
Brand:
Price:
$0.51
SKU:
LOW-240
Quantity:
  • Product Description

    TXM LOW-240 Low Loss Coax Cable (Equivalent to LMR®-240) - Purchase by the foot

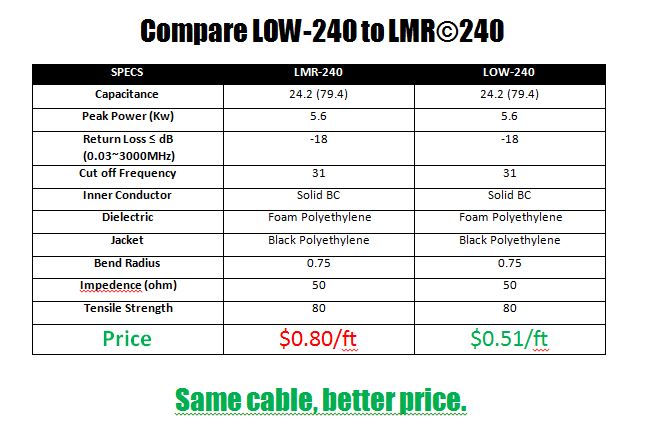

    TXM Brand LOW-240 low loss 50 ohm coaxial cable. The TXM LOW-240 is a Times Microwave LMR®-240 equivalent, and rises to the task of providing superior quality with a minimum of loss.

    The LOW240 50 ohm black polyethylene jacketed cable features bonded aluminum foil and tinned copper braided outer conductor, and solid copper inner conductor.

    Our black polyethelyne jacket is a standard UV resistant jacket, designed for outdoor use.



    LOW®, Registered trademark of TXM.

    LMR®, Registered trademark of TIMES MICROWAVE.



    Product Equivalents

    • Andrews: CNT240
    • Belden: RF240
    • Coleman: 991020
    • Commscope: WBC240
    • Maxrad: M8X
    • RG: 8x
    • Terrawave: TWS-240
    • TIMES MICROWAVE: LMR®-240

    Product Specifications

    Download Specification Sheet: HERE



     Construction Specification



    Material

    Diameter in(mm)

    1. Inner Conductor

    Solid Copper

    0.056(1.42±0.02)

    2. Dielectric

    Physical Foam Polyethylene

    0.15(3.81±0.15)

    3. Outer Conductor

    Bonded Aluminum Foil + Tinned Copper Braid

    0.178(Nom. 4.52)

    4. Jacket

    Black Polyethylene

    0.24(6.10±0.20)

    Electrical Characteristics

     Mechanical and Environmental Characteristics

    Capacitance (pF/ft)/ (pFm)

    24.2(79.4)



    Min. Bend Installation Radius in(mm)

    0.752(19.1)

    Impedance(ohm)

    50



    Min. Bend Repeated Radius in(mm)

    2.5(63.5)

    Velocity (%)

    84



    Bending Movement ft-lb (N-m)

    0.25(0.39)

    Time Delay (nS/ft nS/M)

    1.21(3.97)



    Weight lb/ft (kg/m)

    0.026(0.039)

    Shielding Effectiveness(dB)

    >90



    Tensile Strength lb (kg)

    80(36.3)

    Inductance (µH/ft)/(µH/m)

    0.060(0.20)



    Flat Plate Crush lb/in (kg/mm)

    20(0.36)

    Voltage Withstand (VDC)

    1500



    Operating Temp. °F (℃)

    -40to+185

    (-40to+85)

    Jacket Spark(VAC)

    5000



    Storage Temp. °F (℃)

    -40to+185

    (-40to+85)

    Cut off Frequency(GHz)

    31



    Installation Temp. °F(℃)

    -94to+185

    (-70to+85)

    Peak Power(kW)

    5.6



    RoHS/REACH

    Compliant

    Return Loss ≤ dB (0.03~3000MHz)

    ≤-18



    Attenuation (68°F /20℃) and Avg. Power (104°F /40℃) sea level

    Frequency(MHz)

    Typical Attenuation

    (dB/100ft)

    Max Attenuation

    (dB/100ft)

    Avg. Power(KW)

    30

    1.3

    1.50

    1.49

    50

    1.7

    1.87

    1.15

    150

    3.0

    3.40

    0.66

    220

    3.7

    4.18

    0.54

    450

    5.3

    5.95

    0.38

    700

    6.6

    7.43

    0.29

    750

    6.9

    7.78

    0.28

    800

    7.1

    8.02

    0.27

    900

    7.6

    8.58

    0.26

    1500

    9.9

    11.18

    0.20

    1800

    10.9

    12.30

    0.18

    2000

    11.5

    13.00

    0.17

    2500

    12.9

    14.55

    0.15

    5800

    20.4

    23.00

    0.10

    Rev:3.0 Date: 6-8-2015
