LC UPC to LC UPC Duplex OM4 Armored PVC (OFNR) Patch Cable

(No reviews yet) Write a Review
3-5 Day Lead Time
Frequently bought together:


LC UPC to LC UPC Duplex OM4 Armored PVC (OFNR) Patch Cable

Custom Lengths and Options Available!  Contact Us  for a quote now

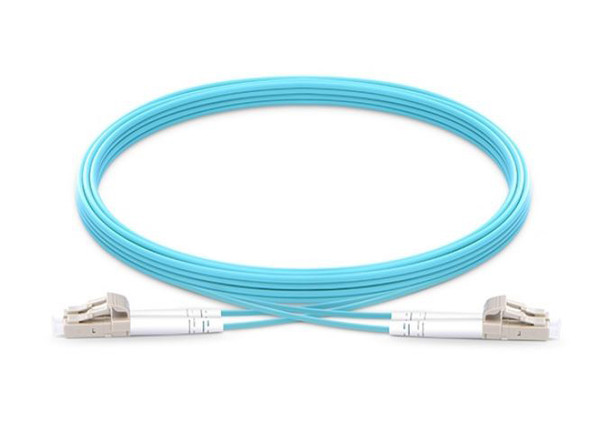

OM4 50/125 Multimode LC/UPC to LC/UPC Duplex Armored Fiber Optic Cable

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Connector A LC UPC Connector B LC UPC
Fiber Mode 50/125μm Fiber Type Duplex
Cable Diameter 3.0mm Cable Jacket Single Armored
Cable Color Aqua Cable Material Stainless steel tube, PVC
Minimum Bend Radius (Dynamic) ≥20D (mm) Minimum Bend Radius (Static) ≥10D (mm)
Fiber Grade Bend Insensitive Tensile Loads 100~132lbs
Insertion Loss ≤0.3dB Return Loss ≥20dB
Operating Temperature -40~75°C Storage Temperature -45~85°C
