TELCO FLEX KS24194 L3 CLASS B CTN BRAIDED CABLE - 2 AWG - Bulk Cable - Choose Length and Cable

(No reviews yet) Write a Review
$3.25
Frequently bought together:

Description

TELCOFLEX III

CABLE SIZE - 2 AWG

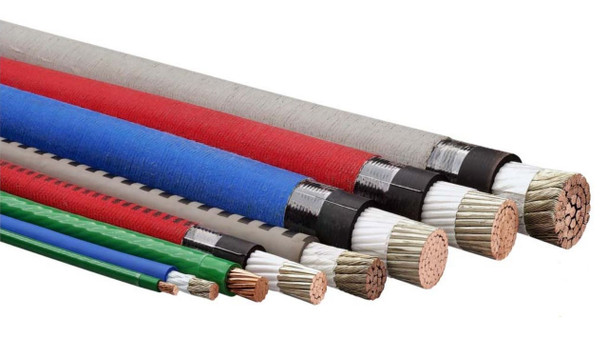

TelcoFlex® lll Central Office Power Wire, 600 Volts, Copper Conductor Central Office/Telecom Power Cable Class B Strand With Braid CSA approved, Non-Halogen Insulation, available in 14 AWG to 750 KCMIL - Single Conductor

The TelcoFlex® III Central Office Power Wire and Cable (Class B Strand With Braid) has low-smoke, lead-free and silicone-free non-halogenated insulation.

UL Central Office Power Cable 105ºC dry, 60ºC wet. UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts.

Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.

Specifications:
Meets or exceeds the following:
UL Listed RHH/LS
FT-4 Flame Test
VW-1
ASTM B-33
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 105ºC
IEC 60674 and 60332
RoHS / Reach Compliant


Construction:
The TelcoFlex® lll cable is single conductor with a class B stranded tinned copper conforming to ASTM B-33 and Underwriters' laboratories requirements. An opaque mylar tape shall be applied over the conductor to facilitate stripping. Insulation is 90ºC rated low smoke, non-halogen, TelcoHyde™ 5221 conforming to Underwriters' Laboratories standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105ºC AWM rated. The insulation has a limiting oxygen index of 35%.

Manufacturer Cross-Reference Part Numbers

Size Manufacturer Gray Green Blue Red Black
1/0 AWG Lucent 407405794 407405802 407405786 407405810 407870450
  Southern Wire 56966701 56966901 56966401 56967001 57138401
  AIW 39764 39782 39832 39831 39830

2 AWG Lucent 407405760 407405778 407405752 407405745 407870468
  Southern Wire 56975701 56976001 56976101 56975801 56975901
  AIW 39763 39826 39827 39786 39825

4 AWG Lucent 407405711 407405729 407405703 407405737 408135887
  Southern Wire 56982601 56982801 56982401 56982901 57128701
  AIW 39762 39821 39822 39820 39819

6 AWG Lucent 407405646 407405653 407405638 407405661 407405695
  Southern Wire 56986401 56986501 56986201 56986601 56986101
  AIW 39761 39815 39816 39814 39813

8 AWG Lucent 407405604 407405612 407405596 407405620 407405687
  Southern Wire 57126701 56988001 57149001 56988101 56987901
  AIW 39760 39809 39810 39808 39807

10 AWG Lucent 407576636 407405570 407405554 407405588 407405679
  Southern Wire 57051101 56968201 56968001 56968301 56967901
  AIW 39759 39803 39804 39802 39801

12 AWG Lucent 407405521 407405539 407405513 407405547 408943900
  Southern Wire 56969501 56969601 56969401 56969701 56969301
  AIW 39758 39797 39798 39796 39795

14 AWG Lucent 407405489 407405497 407405471 407405505 408943892
  Southern Wire 57133601 57145701 57155601 57133701 57133501
  AIW 39757 39791 39792 39790 39789
