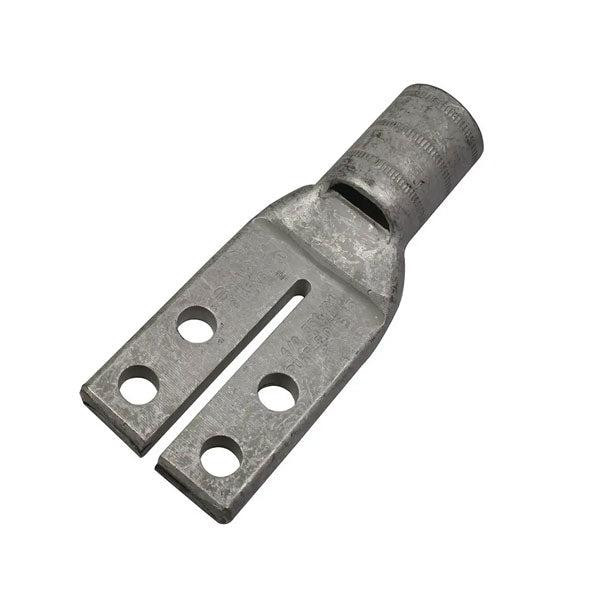

YAZ264TCG1 SPLIT TONGUE LUG 2/0 AWG 1/4" BLT 5/8" SP BLACK WITH WINDOW

The Burndy YAZ264TCG1 is a high-performance HYLUG copper compression terminal designed for heavy-duty power electrical connections. It features a unique 4-hole split pad tongue configuration specifically designed to fit specialized grounding and power distribution network layouts

Key Specifications

• Conductor Size: 2/0 AWG Code copper wire (also rated for 125 Navy)
• Barrel Style: Long barrel with an internal inspection window to verify full wire insertion
• Die Color & Index: Black (Die Index 13)
• Stud / Bolt Size: 1/4 inch
• Voltage Rating: Up to 35 kV (suitable for medium-voltage power applications)
• Material & Finish: Electro-tin plated copper to mitigate galvanic bimetallic corrosion
• Physical Dimensions: Overall length of 3.71 inches with a pad width of 1.38 inches and a 1-9/16" wire strip length requirement [1, 2, 3]
