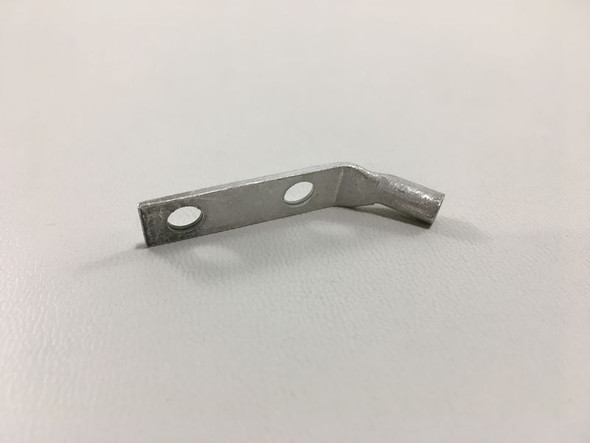

Burndy YAV102TC10E2 Short Barrel Copper Lug 14-10 AWG #10 Stud

(No reviews yet) Write a Review
SKU:
YAV102TC10E2
UPC:
782000000000
Availability:
.
Minimum Purchase:
100 units
$8.34
Frequently bought together:

Description

Burndy YAV102TC10E2 Short Barrel Copper Lug 14-10 AWG #10 Stud

Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), #10 Stud, 3/4" Stud Hole Spacing, Short Barrel, Tin Plated



Product Specifications

Dimensional
 Tongue Angle Straight
 Length (in) 1.84
 Barrel Style Chamfered
 Bolt Hole Size (in) 0.20
 Barrel Type Standard
 Thickness 0.06
 B Length (in) 0.38
 Pad Width (in) 0.36
 E - in 0.75
 Strip Length 7/16
General
 Number of Holes 2
 Product Description Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), #10 Stud, 3/4" Stud Hole Spacing, Short Barrel, Tin Plated
Conductor(s)
 Flex (Class G) Size - Range N/A
 Flex (Class H) Size - Range N/A
 Flex (Class I) Size - Range N/A
 Copper Solid Size (Range) 12 AWG-10 AWG
 DLO Size (Range) N/A
 Copper Stranded (Range) 14 AWG-10 AWG
Physical
 Type of Plating Tin
 Bolt Hole Size #10
 Plated (Yes or No) Y
 Product Material Copper
Approvals / Certifications
 UL Listed Y
 CSA Certified Y
 ROHS Compatible Compliant

This product comes with a manufacturer warranty
