Burndy
Burndy YA8CL45 45 Degree Copper Lug 8 AWG #8-#10 Stud (Red)
(No reviews yet)
Write a Review
- SKU:
- YA8CL-45
- UPC:
- 7.82E+11
- Availability:
- .
- Minimum Purchase:
- 10 units
Frequently bought together:
Description
Burndy YA8CL45 45 Degree Copper Lug 8 AWG #8-#10 Stud (Red)
Cu Tubing Hylug; 1 Hole with Inspection Window; #8 AWG Code, #6 SOL Code, 23 Navy, 10mm2 STR(4.2); 600V-35kV; #8-#10 stud; Standard; Compression; 0.21 in BCD
Product Specifications
<td
| Dimensional | |||||
| Tongue Angle | 45 Degree | ||||
| Length (in) | 1.02 | ||||
| Tongue Type | Standard | ||||
| Barrel Style | Chamfered | ||||
| Bolt Hole Size (in) | 0.20 | ||||
| Barrel Type | Standard | ||||
| Thickness | 0.08 | ||||
| B Length (in) | 0.44 | ||||
| Pad Width (in) | 0.41 | ||||
| Strip Length | 7/16 | ||||
| General | |||||
| Number of Holes | 1 | ||||
| Product Description | Cu Tubing Hylug; 1 Hole with Inspection Window; #8 AWG Code, #6 SOL Code, 23 Navy, 10mm2 STR(4.2); 600V-35kV; #8-#10 stud; Standard; Compression; 0.21 in BCD | ||||
| Conductor(s) | |||||
| Flex (Class G) Size - Range | N/A | ||||
| Flex (Class H) Size - Range | N/A | ||||
| Flex (Class I) Size - Range | N/A | ||||
| Copper Solid Size (Range) | 6 AWG | ||||
| DLO Size (Range) | N/A | ||||
| Copper Stranded (Range) | 8 AWG | ||||
| Physical | |||||
| Type of Plating | Tin - Electro Plated | ||||
| Color Code | Red | ||||
| Plated (Yes or No) | Y | ||||
| Index Number | 49 | ||||
| Product Material | Copper | ||||
| Approvals / Certifications | |||||
| UL Listed | Y | ||||
| CSA Certified | Y | ||||
| ROHS Compatible | Compliant | ||||
| UL Recognized | N | ||||
| CULUS | N | ||||
(Cannot be returned or cancelled)
Related Products
Burndy YA8CL2TC1045 45 Degree Copper Lug 8 AWG #10 (Red)
Burndy
$4.38
Burndy YA8CL2TC1045 45 Degree Copper Lug 8 AWG #10 (Red) Cu compression tubular terminals-code conductor, 2 holes/W/ insp window, #8 AWG;#8 Weld;37/24;#6 Sol,#10 stud,Tin plated, Red, 49 index ...
YA8CL-2TC10-45
Burndy YA8CL90 90 Degree Copper Lug 8 AWG 8-10 Stud (Red)
Burndy
$4.46
Burndy YA8CL90 90 Degree Copper Lug 8 AWG 8-10 Stud (Red) Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, #8 AWG Str,#6 AWG Sol Code, 23 Navy, 600 V-35 kV, 8-10 Stud, 90 Bent, Std bbl,...
YA8CL-90
Burndy YA8CL2TC14E145 45 Degree Copper Lug 8 AWG 1/2" (Red)
Burndy
$5.62
Burndy YA8CL2TC14E145 45 Degree Copper Lug 8 AWG 1/2" (Red) Cu compression tubular terminals-code conductor, 2 holes/W/ insp window, #8 AWG;#8 Weld;37/24;#6 Sol, 1/2" stud, Tin plated, Red, 49 index...
YA8CL-2TC14E1-45
Burndy YAV6CL1BOX Copper Lug 6 AWG #8-#10 Stud
Burndy
$1.52
Burndy YAV6CL1BOX Copper Lug 6 AWG #8-#10 Stud Hylug; 6 AWG; 8-10; 1.31 in L; .46 in W; Tin- Electro plated Product Specifications Dimensional Tongue Angle
YAV6C-L1-BOX
Burndy YA4CL190 90 Degree Copper Lug 4 AWG #8-#10 stud (Gray)
Burndy
$5.42
Burndy YA4CL190 90 Degree Copper Lug 4 AWG #8-#10 stud (Gray) Cu Tubing Hylug; 1 Hole with Inspection Window; #4 AWG Code,40 Navy; 600V-35kV; #8-#10 stud; Standard; Compression; 0.21 in BCD; Gray...
YA4CL190
Burndy YA8CLBOX Short Barrel Copper Lug 8-6 AWG #8-#10 Stud (Red)
Burndy
$1.36

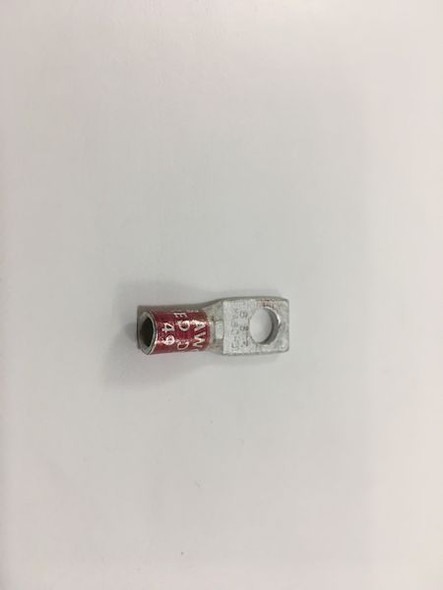

Burndy YA8CLBOX Short Barrel Copper Lug 8-6 AWG #8-#10 Stud (Red) Copper Compression Lug, 1 Hole w/ Inspection Window, 8-6 AWG, #8-#10 Stud, Short Barrel, Tin Plated Product Specifications ...
