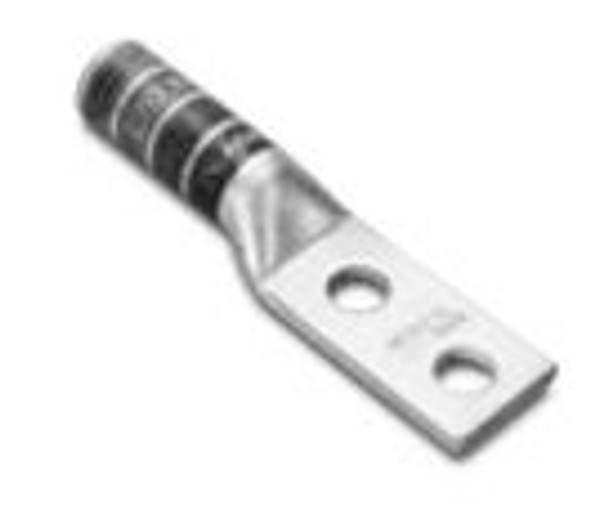

Burndy YA4C2TC14E1 Long Barrel Copper Lug 4 AWG 1/4" (Gray)

(No reviews yet) Write a Review
SKU:
YA4C2TC14E1
UPC:
782000000000
Availability:
If this is a rush order that needs expediting please contact us via LIVE CHAT before placing your order, to confirm we have the full qty needed to ship immediately.
Minimum Purchase:
10 units
$5.58
Frequently bought together:

Description

Burndy YA4C2TC14E1 Long Barrel Copper Lug 4 AWG 1/4" (Gray)

Cu Tubing Compression Terminal, 2 Holes W/o Insp window, #4 AWG Code, 40 Navy, 1/4" Stud, 1.00" Spacing, Long Brrl



Product Specifications

Dimensional
 Tongue Angle Straight
 Length (in) 3.08
 Barrel Style Chamfered,Skived
 Bolt Hole Size (in) 0.27
 Barrel Type Standard
 Thickness 0.09
 B Length (in) 1.12
 Pad Width (in) 0.50
 E - in 1.00
 Strip Length 1-3/16
General
 Number of Holes 2
 Product Description Cu Tubing Compression Terminal, 2 Holes W/o Insp window, #4 AWG Code, 40 Navy, 1/4" Stud, 1.00" Spacing, Long Brrl
Conductor(s)
 Flex (Class G) Size - Range N/A
 Flex (Class H) Size - Range N/A
 Flex (Class I) Size - Range N/A
 Copper Solid Size (Range) N/A
 DLO Size (Range) N/A
 Copper Stranded (Range) 4 AWG
Physical
 Type of Plating Tin - Electro Plated
 Bolt Hole Size 1/4
 Color Code Gray
 Plated (Yes or No) Y
 Index Number 8,346
 Product Material Copper
Approvals / Certifications
 UL Listed Y
 CSA Certified Y
 ROHS Compatible Compliant
 UL Recognized N
 CULUS N
 Industry Standards UL468A-468B

This product comes with a manufacturer warranty
