Burndy YA2C2TC38E6 Long Barrel Copper Lug 2 AWG 3/8" (Brown)

(No reviews yet) Write a Review
SKU:
YA2C2TC38E6
UPC:
782000000000
Availability:
If this is a rush order that needs expediting please contact us via LIVE CHAT before placing your order, to confirm we have the full qty needed to ship immediately.
Minimum Purchase:
10 units
$8.10
Frequently bought together:

Description

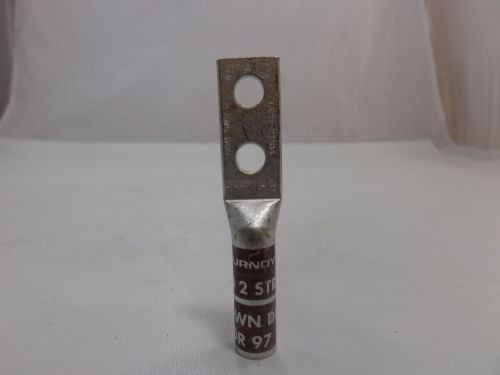

Burndy YA2C2TC38E6 Long Barrel Copper Lug 2 AWG 3/8" (Brown)

Cu Tubing Hylug; 2 Holes w/o Inspection Window; #2 AWG Code,60 Navy; 600V-35kV; 3/8" stud; Long; Compression; 0.40 in BCD; Brown



Product Specifications

Dimensional
 Tongue Angle Straight
 Length (in) 3.30
 Barrel Style Chamfered
 Bolt Hole Size (in) 0.39
 Barrel Type Long
 Thickness 0.11
 B Length (in) 1.25
 Pad Width (in) 0.60
 E - in 0.88
 Strip Length 1-5/16
General
 Number of Holes 2
 Product Description Cu Tubing Hylug; 2 Holes w/o Inspection Window; #2 AWG Code,60 Navy; 600V-35kV; 3/8" stud; Long; Compression; 0.40 in BCD; Brown
Conductor(s)
 Flex (Class G) Size - Range N/A
 Flex (Class H) Size - Range N/A
 Flex (Class I) Size - Range N/A
 Copper Solid Size (Range) 2 AWG
 DLO Size (Range) N/A
 Copper Stranded (Range) 2 AWG
Physical
 Type of Plating Tin - Electro Plated
 Bolt Hole Size 3/8
 Color Code Brown
 Plated (Yes or No) Y
 Index Number 10
 Product Material Copper
Approvals / Certifications
 UL Listed Y
 CSA Certified Y
 ROHS Compatible Compliant
 UL Recognized N
 CULUS N
 Industry Standards UL468A-468B

This product comes with a manufacturer warranty
