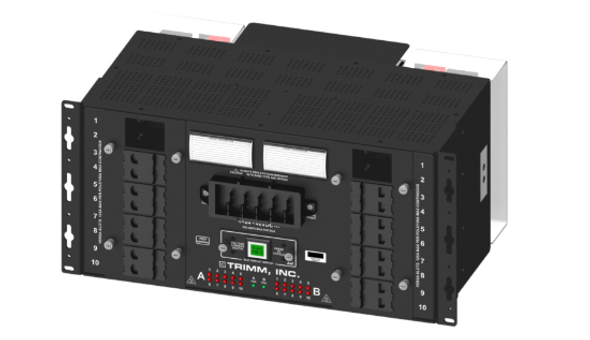

7875001011REVA VERSATILE HIGH CURRENT PDU 10/10 VERSA-SLOT W/ MONITOR REVISION A (NON ROHS)

(No reviews yet) Write a Review
SKU:
7875001011REVA
Availability:
These units are new in the box surplus. Price is good while quantities last
$2,622.82
Frequently bought together:

Description

VERSATILE HIGH CURRENT PDU 10/10 VERSA-SLOT W/ MONITOR (NON ROHS)

Mechanical
Dimensions 19 In. [482.6mm] W x 8.75 In. [222.25mm] H x 12.00 In. [304.8mm] D
Rack Spaces 5U
Mounting Universal, 19 or 23 Inch, WECO or EIA
Offset MTG Positions Flush, 3.5 In. Offset
Finish Black Textured Powder Coat
Packaging
Packaged Width 21In. [53.34cm]
Packaged Length 24 In. [60.96cm]
Packaged Depth 15 In. [38.1cm]
Electrical
Nominal Voltage -/+24-48V DC
Voltage Range -/+19-60V DC
Number of Buses 2
Bus Rating 850 Amps
Max. Interrupt Device 1000 Amps
Number of Positions 10 Versa-Slots/Side
Max Fuse/Breaker TLS Fuse-125A, TPC Fuse-125A, TPS Fuse-70A, 1 Pole Breaker-100A, 2 Pole Breaker-150A
Max Continuous Load TLS Fuse-100A, TPC Fuse-100A, TPS Fuse-56A, 1 Pole Breaker-80A, 2 Pole Breaker-120A
Power Dissipation (Fully Loaded) 205 Watts max
Fuse/Breaker Type TLS, TPC, and TPS Fuses, 1 and 2 Pole Breakers
Extras
Load Sharing NO
Filtered NO
Volt/Current Meter YES
Connections
Input Type 2 Hole Compression Lugs, 3/8 In. Stud x 1 In. Spacing, 2 Sets per Bus
Input Wire Range Up to 750 kcmil (x2)
Max. Terminal Width 1.625 In. Max
Output Type 2 Hole Compression Lugs, 1/4 In. Stud x 5/8 In. Spacing
Output Wire Range Up to 2/0 AWG
Max. Terminal Width (Output) 0.640 In. max
Chassis Ground Type 2 Hole Compression Lugs, 1/4 In. Stud x 5/8 In. Spacing
Ground Wire Range Up to 2/0 AWG
Environmental
Short Term. Op. Temp -40° C to 65° C
Max. Ambient Up to 65° C
Storage Temperature -40° C to +70° C
Humidity Range 0 to 95% non-condensIng
Alarming
Alarm Indicators Green (Power)/Red (Alarm)
Alarm Functions Form C Relay Contacts for Remote Fuse and Power Fail Indication, Bus Display Switch for Local Display Only
Connection Type Solderless Wire Wrap (18 to 30 AWG)
Alarm Rating DC 30W/AC 50VA
