1x8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 900um, SC/APC, Singlemode

(No reviews yet) Write a Review
SKU:
PLC-ABS-1X8-SCA-9-01M5
Availability:
.
$39.00
Frequently bought together:

Description

1×8 Fiber PLC Splitter, ABS Box Type, Singlemode, SC/APC



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Product Details

Package Style ABS Module Configuration Type 1x8
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Input/Output Fiber Diameter 900μm Pigtail Length 1.5m
Insertion Loss ≤10.6dB Return Loss ≥50dB
Loss Uniformity ≤1.0dB Directivity ≥55dB
Polarization Dependent Loss ≤0.3dB Temperature Dependent Loss ≤0.5dB
Wavelength Dependent Loss ≤0.3dB Operating Bandwidth 1260~1650nm

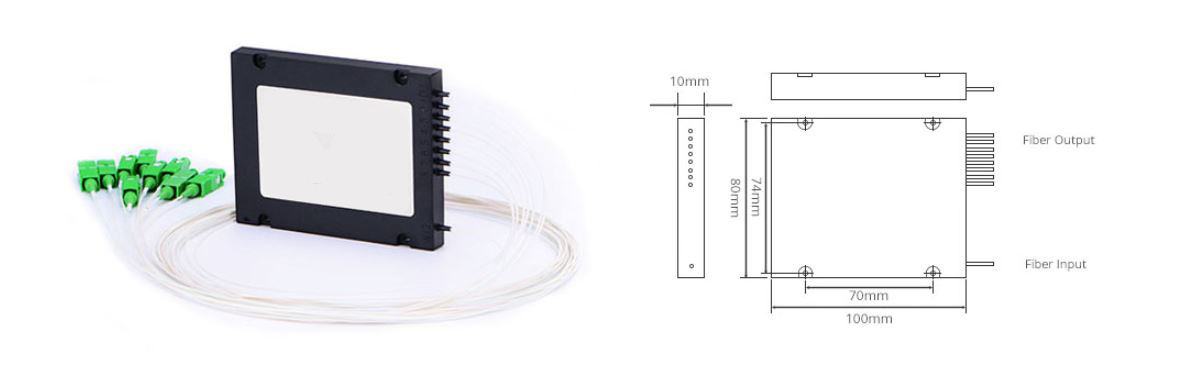

Operating/Storage Temperature -40~85°C Dimensions (HxWxD) 0.39"x3.94"x3.15" (10x100x80mm)
