LMR®-195 Type Low Loss RF Coax Cable Per Foot - LOW-195

×
×
Brand:
Price:
$0.35
SKU:
LOW-195
Quantity:
  • Product Description

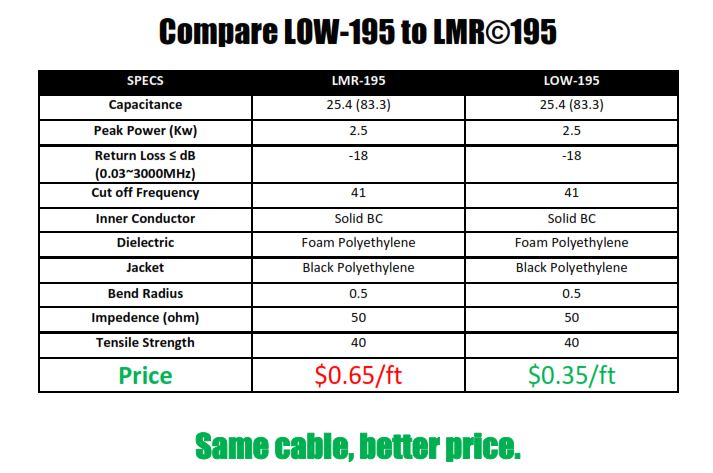

    TXM LOW-195 Low Loss RF Coax Cable Per Foot (Equivalent to LMR®195)

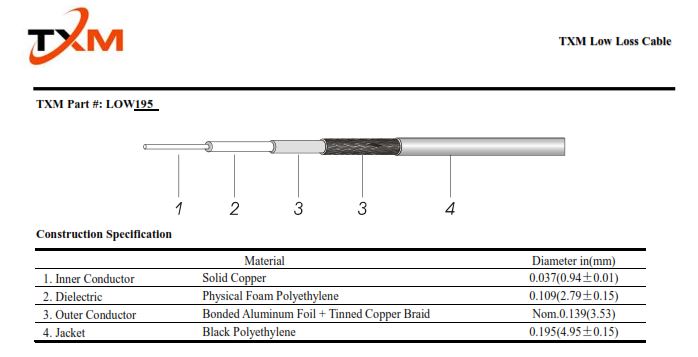

    TXM Brand LOW-195 low loss 50 ohm coaxial cable. The TXM LOW-195 is a Times Microwave LMR®195 equivalent, and rises to the task of providing superior quality with a minimum of loss. The LOW195 50 ohm cable features bonded aluminum foil and tinned copper braided outer conductor, and solid copper inner conductor.

    Our black polyethelyne jacket is a standard UV resistant jacket, designed for outdoor use. Carefully crafted to be a straight drop-in replacement for RG-58 and RG-142.



    LOW®, Registered trademark of TXM.

    LMR®, Registered trademark of TIMES MICROWAVE.



    Product Equivalents

    • Andrew: CNT195
    • Belden: RF195
    • Coleman: 991036, 991041
    • Commscope: WBC195
    • Laird: TL92463, TL92887
    • RG: 58, 141
    • Terrawave: TWS-195
    • TIMES MICROWAVE: LMR®-195

    Product Specifications

    Download Complete Specification Sheet PDF: HERE


    Electrical Characteristics

    Mechanical and Environmental Characteristics

    Capacitance (pF/ft)/ (pFm)

    25.4(83.3)



    Bend Radius: Installation in (mm)

    0.5(12.7)

    Impedance(ohm)

    50



    Bend Radius: Repeated in (mm)

    2.0(50.8)

    Velocity (%)

    76



    Bending Movement ft-lb (N-m)

    0.2(0.27)

    Time Delay (nS/ft nS/M)

    1.30(4.26)



    Weight lb/ft (kg/m)

    0.022(0.03)

    Shielding Effectiveness(dB)

    >90



    Tensile Strength lb (kg)

    40(18.2)

    Inductance (µH/ft)/(µH/m)

    0.061(0.21)



    Flat Plate Crush lb/in (kg/mm)

    15(0.27)

    Voltage Withstand (VDC)

    1000



    Operating Temp. °F (℃)

    -40to+185

    (-40to+85)

    Jacket Spark(VAC)

    5000



    Storage Temp. °F (℃)

    -40to+185

    (-40to+85)

    Cut off Frequency(GHz)

    41



    Installation Temp. °F(℃)

    -94to+185

    (-70to+85)

    Peak Power(kW)

    2.5



    RoHS/REACH

    Compliant

    Return Loss ≤ dB (0.03~3000MHz)

    -18



    Attenuation (68°F/20℃) and Avg. Power (104°F/40℃) sea level

    Frequency(MHz)

    Typical Attenuation

    (dB/100ft)

    Max Attenuation

    (dB/100ft)

    Avg. Power(KW)

    30

    2.0

    2.3

    0.89

    50

    2.5

    2.8

    0.68

    150

    4.3

    4.4

    0.35

    220

    5.2

    5.4

    0.29

    450

    7.5

    7.8

    0.20

    700

    9.6

    9.8

    0.16

    750

    9.9

    10.2

    0.15

    800

    10.2

    10.5

    0.14

    900

    10.7

    11.1

    0.14

    1500

    13.4

    14.5

    0.11

    1800

    15.3

    16.0

    0.10

    2000

    16.1

    16.9

    0.09

    2500

    18.1

    19.0

    0.08

    5800

    28.2

    29.9

    0.05
