009-6212-2100 200A Dual Feed 6/6 Circuit Breaker Panel 23" White

×
×
Brand:
Price:
$1,095.00
SKU:
009-6212-2100
Quantity:
  • Product Description

    Minimize the need for an additional battery distribution frame by bringing power management closer to network elements with this dual-feed high-current circuit breaker panel. A modular design provides customization, as well as enabling maintenance on single circuits while other output lines are live. The panel’s configurable design is ideal for remote locations requiring comprehensive power management capabilities on one panel. Users can configure the panel with up to 100A breakers, and deploy a high-powered panel (up to 400A total) in just 3 rack units of space. Convenient circuit breakers enable simple installation, replacement and power restoration. Sides A & B of the panel are totally isolated, providing battery protection and reduced risk of complete power failure. A replaceable alarm card contains power and alarm LEDs for both feeds

    Primary Benefits

    • Flexibility: Easy to install bullet-style breakers (1A to 100A each) make breaker installation and reconfiguration safe and simple
    • Robust input connections: Accept secure two-hole compression lugs up to 2/0 AWG
    • Large output connections: Two-hole compression lug output terminals accept up to #2 AWG to support large breaker values
    • Security: Individual breaker faceplate design makes each breaker individually accessible and provides physical protection of the toggle from inadvertent tripping
    • Universal voltage automatically accepts ±24V, -48V
    • Added safety: Covers are included for all input and output power connections

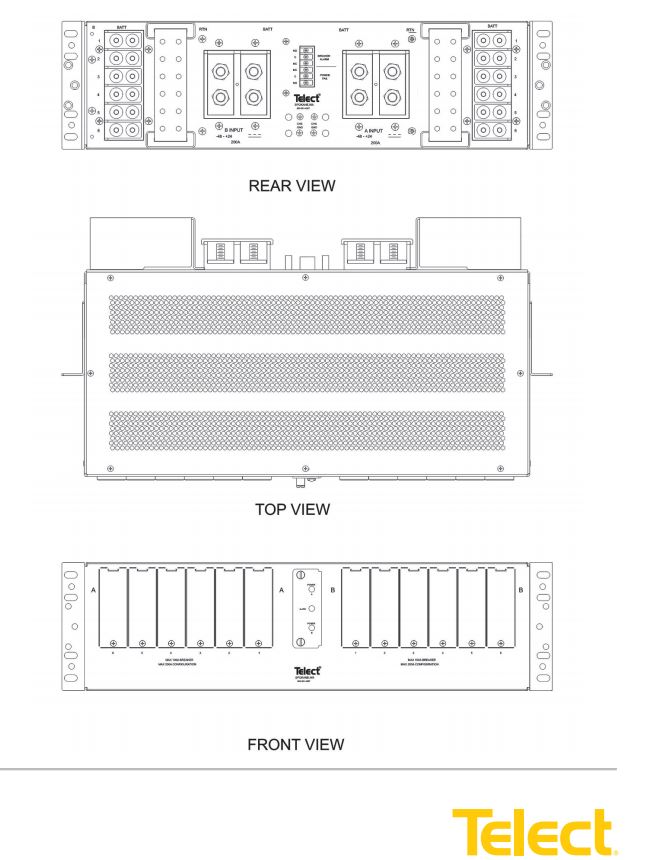

    Part-Specific Specifications

    Mechanical
    Width 17.25 in. (438.15 mm.)
    Height 5 in. (127.00 mm.)
    Depth 8 in. (203.20 mm.)


    General Specifications

    Electrical
    Nominal voltage +/-24V to -48V
    Input rating 200A per bus
    Maximum input interrupt device 250A
    Maximum output protection device Front output panel: 50A
    Rear output panel:100A
    Power dissipation (full load) 20W per bus

    Mechanical
    Weight 19 lbs. (8.62 kgs.)
    Material Cold-rolled steel
    Color White
    Finish Powder coat
    Mounting 19" or 23"

    Environmental
    Temperature -5 to 55 deg. C
    Humidity 0 to 90%, non-condensing

    Connections
    Input terminals 2-hole compression lug, 5/16"-18 studs on 1" centers
    Output terminals 2-hole compression lug, #10-32 studs on 5/8" centers
    Chassis ground Front output panel: 1/4"-20 studs on 1" centers
    Rear output panel: 1/4"-20 studs on 5/8" centers

    Alarms
    Alarm indicators Power, breaker alarms
    Alarm type Form C
    Alarm connector Screw terminal, #3-48
    Relay contact ratings 1A at 60 VDC; 2A at 30 VDC

    Compliance
    Agency compliance

    NEBS 3, UL, CE
